在庫あり 注目商品
PCU2088R5

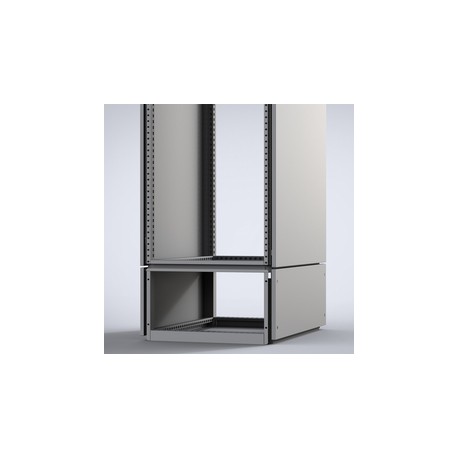

PCU2088R5 ELDON Cabling frame 200x800x800 PCU2088R5
$0.00米ドル
3782 在庫あり
主な仕様
利点: (機能):The frame can be segregated from the enclosure which creates extra space for hazardous components, for example main busbars. Standard accessories can be mounted within the frame thanks to the universal hole pattern allowing accessories to be easily mounted, e.g. busbar supports.
コメント: (特徴):Side panels PCUP, are required at the beginning and end of the individual or bayed bottom extension frames.
機能: (機能):Bottom extension frame for mild steel combinable floor standing enclosures.
利点: (特徴):The frame creates additional space at the bottom of the enclosure with integrated hole patterns and allows segregation if required.
サプライヤー情報
ELDON
製品: 4827
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 利点: (機能) | The frame can be segregated from the enclosure which creates extra space for hazardous components, for example main busbars. Standard accessories can be mounted within the frame thanks to the universal hole pattern allowing accessories to be easily mounted, e.g. busbar supports. |
| コメント: (特徴) | Side panels PCUP, are required at the beginning and end of the individual or bayed bottom extension frames. |
| 機能: (機能) | Bottom extension frame for mild steel combinable floor standing enclosures. |
| 利点: (特徴) | The frame creates additional space at the bottom of the enclosure with integrated hole patterns and allows segregation if required. |
| 仕上げ: (技術データ) | RAL 7035 structured powder coating. |
| 材質: (技術データ) | Frame in 1.75 mm steel plate, panels in 1.35 mm steel plate. |
| 保護: (技術データ) | IP 41 TYPE 1. |
| 説明: (技術データ) | For fixing and routing of cables or mounting of busbar. Identical hole pattern to the enclosure's frame makes all relevant accessories (e.g. CLPF, CLPK, etc) possible to mount. Fixed to the base of the enclosure by M12 screws (provided). |
| パック数量: (技術データ) | 1 piece with front and back cover plates with mounting accessories. |
| 取り付け要件: (技術データ) | Add side panels PCUP for closing the sides. |
製品説明
ZOCALO PCU-200x800x800 R5, Socket for busbar and cabling 200x800x800
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Description:
