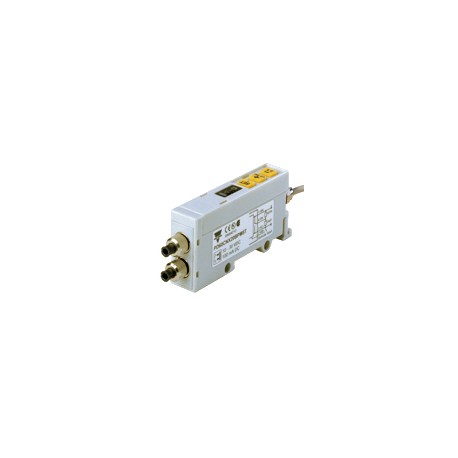

PD60CNX20BPT

Photoelectrics, Fibre Optic SensorPlastic FibresType PD 60 CNX 20 BP .. T• Range: Fibre dependent- Diffuse Reflective typ. 80 mm- Through Beam typ. 200 mm• Teach-In (keyboard or remote setup)• Microprocessor controlled and EEPROM parameter storage• Operational voltage 10 - 30 V DC• Output 100 mA, NPN and PNP• Light or dark switching selectable• IP65 proctection• Timer: ON-delay or OFF-delayProduct DescriptionOrdering KeyPD 60 CNX 20 BP M5 TThe PD60CNX20BP.. Tisa fibre optic amplifier made spe- cific for plastic fibres. The sen- sor is microprocessorbased and has a buildin pro- grammable functions such as Teach-In function for fast sensing distance optimising, NO or NC output, Time delay Onor OFF. The sensor output is build as a Push-pull output that performs both a NPN and PNP output which are fully protected against short-cir-cuit, transients and wrong polarity. The sensor is build in a strong13 x 30 x 60 mm polycarbonatehousingfor DIN-rail mounting.The sensors are suitablefor applicationsthat require little space and high accuracy such as: Small part detection, tightlocations,checking parts, counting, precise part positioning,material handling and assembly and roboticsTypeHousing style Housing size Housing material Not UsedPlastic fibresSensing distance cmOutput typeOutput configuration Connection type Teach-In modeType SelectionHousingRangeOrdering no. Ordering no.W x H x DSn (Fibre dependent)NPN and PNP cable NPN and PNP plugMake or break switchingMake or break switching13 x 30 x 60 mm80 mm diffuse modePD 60 CNX 20 BP TPD 60 CNX 20 BP M5 T200 mm through beam modeSpecificationsRated operating distance (Sn)See optical fibre tableDiffuse mode Up to 80 mmThrough beam modeUp to 200 mmSensitivityTeach-InAutomatic threshold set-upManual fine tune Sensitivity increase or sen- sitivity decreaseTemperature drift< 0,4%/C°Hysteresis (H)Differential travel ≤ 5%Rated operational volt. (UB ) 10 to 30 VDC (ripple included)Ripple (Urpp ) ≤ 10%Output currentContinuous (Ie) 100 mA Short-time (I) 100 mANo load supply current (Io)≤ 40 mAVoltage drop (Ud )IL = 100 mA ≤ 2 VDC IL = 10 mA ≤ 1 VDCRemote inputON≤ 1.4 VDC OFF≥ 3.0 VDCTimerRange programmable 0 to 5 s in 11 stepsFirst step 40 msFollowing step500 msProtectionShort-circuit, reverse pola- rity, transientsLight sourceGaAIAs, LED 660 nm Light type Red modulated Ambient lightIncandescent light10’000 LuxSunlight20’000 LuxSpecifications are subject to change without notice (15.06.2010) 1
