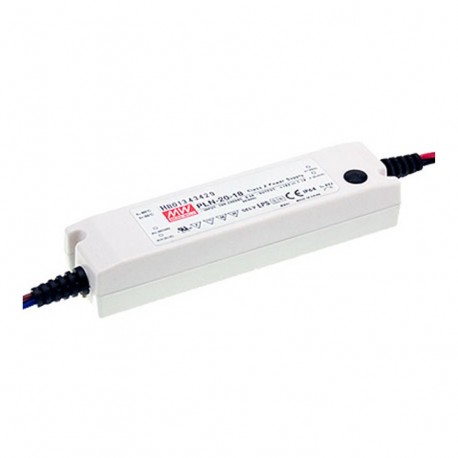

PLN-20-36

技術仕様

パラメータ	価値
名前	PLN-20-36
形式	Box
シリーズ	PLN-20
承認	CE, PSE, UL
電力（W）	19,80
サブフォーマット	IP64
幅（mm）	38.50
高さ（mm）	28.00
AC入力最大	277,00
AC入力最小	90,00
アプリケーション	Lighting
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	19.8
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	148.50
長い説明	LED driver.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP64.Input range90-277Vca47-63Hz.Output in constant current550mA.Adjustable by external potentiometer (0-550mA).Range of output voltage with current mode constant27 to 36Vccaccording to demand load.Power:Of 19.8 W.Efficiency typical:83%.Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.Input class II without grounding.Factor corrector, power>0,9to 230vac at full load.Operating temperature range of caseTcfrom-30ºCup+60ºC.Dimensions (Length x Width x Height):148,5 x 38.5 x 28mm.2 years of warranty.Manufacturer: MEAN WELL.The series PLN are LED Drvers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. The output current can be adjusted byOnepotentiometerexternallocated in the housing of the source itself.With plastic housing is isolated. A small and compact size makes it have high reliability and low cost. These sources are suitable for LED lighting and signalling mobile installations of interior and exterior. Suitable for wet environments and wet conditions. Burn test at 100% load.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	2,00
原産国	China
出力電流 mA	Five hundred fifty
最小出力強度（mA）	550,00
出力最大強度（mA）	550,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver.
