PMY54

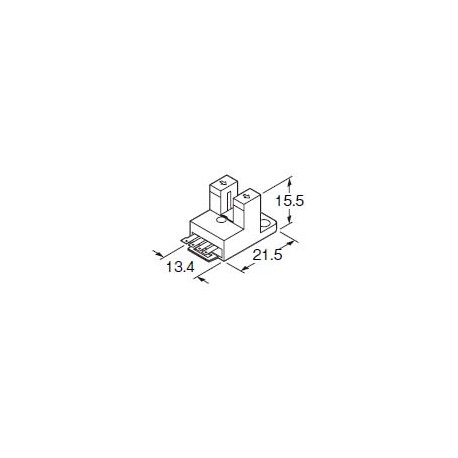

PMY54 PM-Y54 PANASONIC *UZJ334*, u-shape type, 5mm, NPN, connector
$0.00米ドル
4317 在庫あり
主な仕様
アイテム:Specifications
ケーブル:-
出力:NPN open-collector transistorMaximum sink current: 50 mAApplied voltage: 30 V DC or less (between output and 0 V)Residual voltage: 0.7 V or less (at 50 mA sink current), 0.4 V or less (at 16 mA sink current)
重さ:Net weight: 3 g approx.
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | - |
| 出力 | NPN open-collector transistorMaximum sink current: 50 mAApplied voltage: 30 V DC or less (between output and 0 V)Residual voltage: 0.7 V or less (at 50 mA sink current), 0.4 V or less (at 16 mA sink current) |
| 重さ | Net weight: 3 g approx. |
| 詳細 | Small With connector Y type |
| 製品 | Small U-shaped Micro Photoelectric Sensor[Amplifier Built-in] PM-44/PM-54 |
| 材料 | Enclosure: PBT, Slit cover: Polycarbonate, Terminal part[PM-*54(P) only]: Solder plated |
| ヒステリシス | 0.05 mm 0.002 in or less |
| 部品番号 | PM-Y54 |
| 製品名 | Small U-shaped Micro Photoelectric Sensor[Amplifier Built-in] PM-44/PM-54(Discontinued) |
| 再現性 | 0.03 mm 0.001 in or less |
| 応答時間 | Under light received condition: 20 micros or lessUnder light interrupted condition: 100 micros or less(Response frequency: 1 kHz or more) |
| 検知範囲 | 5 mm 0.197 in (fixed) |
| 配線長 | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| 製品番号 | PM-Y54 |
| 供給電圧 | 5 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 発光要素 | Infrared LED (Peak emission wavelength: 940 nm 0.037 mil, non-modulated) |
| 耐衝撃性 | 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions for three times each |
| 周囲照度 | Fluorescent light: 1,000 lx at the light-receiving face |
| 周囲温度 | -25 to +55 degrees -13 to +131degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +80 degrees -22 to +176degrees Fahrenheit(Note) Used at an ambient temperature of +50 degrees +122degrees Fahrenheit, or more, make sure to mount it on a metal body. |
| 消費電流 | 15 mA or less |
| 操作インジケーター | Vermilion LED (lights up under light received condition) |
| 耐振動性 | 10 to 2,000 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 50 MOhm, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 最小検知対象 | 0.8 x 1.8 mm 0.031 x 0.071 in opaque object |
| 出力:出力操作 | Incorporated with 2 outputs: Light-ON / Dark-ON |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
