在庫あり 注目商品

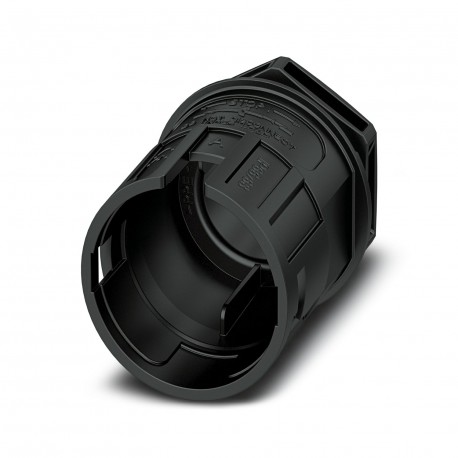

PRC FT25-0-HSG
PRC FT25-0-HSG 1065795 PHOENIX CONTACT Circular connectors (device-side), Range of articles: PRC, Device con..
$0.00米ドル
4131 在庫あり
主な仕様
:• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
色:black
幅:37.6 mm
身長:37.6 mm
サプライヤー情報
製品: 0
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| 色 | black |
| 幅 | 37.6 mm |
| 身長 | 37.6 mm |
| 長さ | 51.6 mm |
| 安全に関する注意事項 | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| 製品タイプ | Panel feed-through |
| シール材 | Silicon |
| 製品ファミリー | PRC 35 |
| 記事の改訂 | 03 |
| ハウジング材質 | PPE |
| 保護クラス | II |
| 注文情報: | Connector housing without contact insert. Please order the appropriate contact inserts according to the accessories list |
| 汚染度 | 2 |
| 公称電圧ATD | 690 V AC (III/2.00) in accordance with IEC 61984 |
| 保護の程度 | IP66 |
| 定格電圧（III/2） | 690 V |
| 衝撃の影響のカテゴリー | IK08 (-25°C) |
| ハウジング部分の色 | black |
| 絶縁材料グループ | I / CTI 6000 |
| 定格サージ電圧（III/3） | 6 kV |
| ねじ接続用材質 | PPE |
| 周囲温度（アセンブリ） | -5 °C ... 85 °C |
| 周囲温度（動作） | -40 °C ... 105 °C (dependent on the derating curve) |
| UL 94準拠の難燃性評価 | V0 |
| 周囲温度（保管/輸送） | -40 °C ... 70 °C |
製品説明
Conect. plug. to be apar. front wall, Article family: PRC 35, housing material: PPE, color: black, rated voltage: 690 V AC. Connector housing without contact insert. Order the appropriate contact inse
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
