PV-FT-C3M-C-2,5-4-VPE250

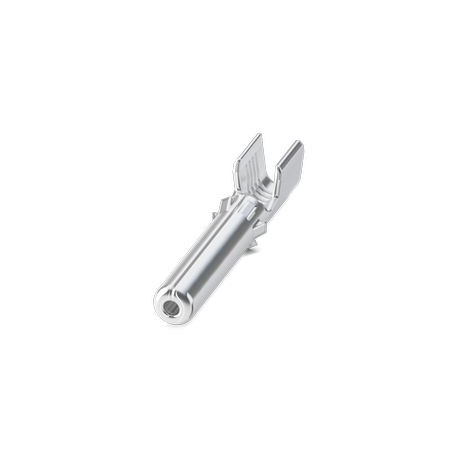

PV-FT-C3M-C-2,5-4-VPE250 1196772 PHOENIX CONTACT Crimp contact, Article family: SUNCLIX, number of poles: 1,..
$0.00米ドル
3778 在庫あり
主な仕様
:• WARNING: only qualified personnel specialized in electrical engineering can install and use the product, always taking into account the following safety indications. Specialized personnel must be familiar with the fundamentals of electrical engineering. You must be able to identify and avoid hazards. The corresponding symbol on the packaging indicates that personnel specialized in electrical engineering are required for installation and operation.
幅:5.2 mm
身長:6.2 mm
経度:27.6 mm
サプライヤー情報
製品: 0
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| • WARNING: only qualified personnel specialized in electrical engineering can install and use the product, always taking into account the following safety indications. Specialized personnel must be familiar with the fundamentals of electrical engineering. You must be able to identify and avoid hazards. The corresponding symbol on the packaging indicates that personnel specialized in electrical engineering are required for installation and operation. | |
| 幅 | 5.2 mm |
| 身長 | 6.2 mm |
| 経度 | 27.6 mm |
| プラグサイクル | 100 |
| 製品タイプ | Bushings |
| 安全に関する注意事項 | • WARNING: Serve only products in perfect condition. Products should be checked regularly for damage. Remove defective products immediately. Replace damaged products. It is not possible to repair them. |
| 製品ファミリー | Sunclix |
| 接続タイプ | Setting |
| 挿入力 | < 45 N ±10 N |
| 極数 | 1 |
| 接触材料 | Cu |
| 低接触抵抗 | < 0.3 mΩ (Crimp to Crimp) |
| シングルドライバー、セクション | 2.5 mm² 4 mm² |
| 定格電流（2.5 mm²） | 27 A |
| 定格電流（4.0 mm²） | 34 A |
| 材質: 接触面 | Ag |
| 周囲温度（サービス） | -40 °C ... 85 °C |
| 周囲温度（取り付け） | -5 °C ... 50 °C |
| 個々の導体の被覆剥き長さ | 9 mm -1 mm |
製品説明
Crimp Contact, Item Family: Sunclix, Pole Number: 1, Min. Conductor Cross-Section: 2.5 mm², Max. Conductor Cross-Section: 4 mm², Rated Current: 27 A, Connection Type: Crimp, Contact Connection Type: M
