RCB-1600-24

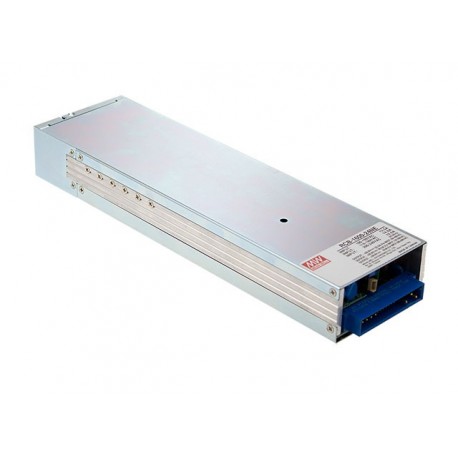

RCB-1600-24 MEANWELL 1600W Rack Mountable Front End Battery Charger, 24V / 55A, PMBus protocol
$0.00米ドル
3792 在庫あり
主な仕様
おお:180, 190, 200, 210, 240, 250, 270, 330, 350, 400, 550
ファン:Yes
名前:RCB-1600-24
州:Recommended Model
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| おお | 180, 190, 200, 210, 240, 250, 270, 330, 350, 400, 550 |
| ファン | Yes |
| 名前 | RCB-1600-24 |
| 州 | Recommended Model |
| アラーム | Over Temperature, mains Failure, Output OK |
| 形式 | 19"Rack |
| シリーズ | RCB-1600 |
| 出力1 | +24 |
| 承認 | CE, UL |
| インタフェース | I2C, PMBus |
| 電力（W） | 1.584,00 |
| サブフォーマット | 1U |
| 幅（mm） | 85.00 |
| 高さ（mm） | 41.00 |
| AC入力最大 | 264,00 |
| AC入力最小 | 90,00 |
| アプリケーション | Industrial, Telecommunications |
| 電池のタイプ | AGM, Wet, Li-ion |
| メーカー | MEAN WELL |
| 製品タイプ | Chargers |
| 充電段階 | Three |
| 隔離（V） | 3.000,00 |
| 入力コネクタ | Screw-Type |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 300.00 |
| 長い説明 | Battery charger for 19" Rack programmable via ITwoC and PMBus.Load in 3 stages.FormatRack 19".Range of universal input90-264vac. 47-63Hz.Absorption voltage28,8 Vdc.Float voltage27,6 Vdc. Adjustable by potentiometer (23,5-30vdc). ProgrammableITwoC and PMBusfrom 75% to 125%.Intensity of load55A. ProgrammableITwoC and PMBusfrom 20% to 100%.Power:1584W.Type of batteries:Gel, AGM, wet, Lithium-Iron and Lithium-Magnesium.Battery capacity:180-550Ah.Efficiency typical:92%.Paralelizable up to 5 units with sharing of active current and diode mosfet protection in the Rack RHP-1U.Hot Swapt. Change in hot.Factor corrector, power>0,97to 230vac at full load.Remote on / off.Auxiliary output and 5V 0.3 A.3-color LED charging status indicator.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:300 x 85 x 41.5 years of warranty.Manufacturer: MEAN WELL.The chargers of the series RCB-1600 are designed to install in the Rack RHP-1U supports up to 5 chargers CPR-1600. These chargers allow you to charge lead acid batteries, Gel, AGM, wet, Lithium-Iron and Lithium-Manganese with possibility to configure the load curves by using ITwoC and PMBus, and optionally via CANBus. We can schedule the tensions of absorption, charge current and float voltage to suit to our batteries. Can be connected in parallel up to 5 chargers protected between them using a diode, Mosfet protection of the current investment. They have a wide range of temperature from -30ºC up to +70ºC. The tension can also be adjusted via a potentiometer. Have a high efficiency and auxiliary output of 5V. Hot Swapt or hot-swap allows us to replace any damaged equipment without having to stop the system, or to increase the power at any time. The chargers of the series RCB-1600 offers the maximum flexibility to adapt to any type of batteries. |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 5,00 |
| 原産国 | Taiwan |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Battery charger for 19" Rack programmable via ITwoC and PMBus.
