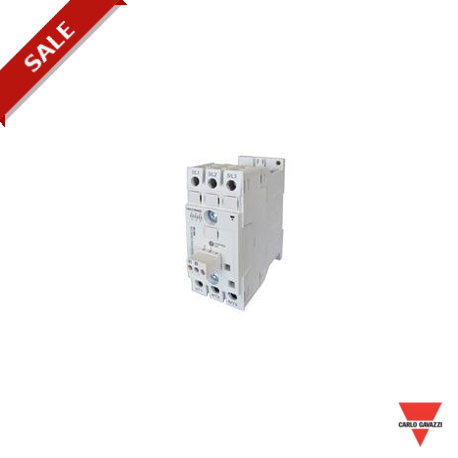

REC2R48D20GKE

Solid State Motor Contactor3 Phase Motor ReversingTypesREC2R• AC electronic motor Reversing Relay• Instantaneous Switching• Three phase with two pole switching• Control status LED indication• Two control input ranges: 24 VAC/DC, 90-253 VAC• Motor rating up to 3kW (3.0 HP)• Rated Operational Voltage up to 600 VAC• Opto-isolation at 4kVrms• Mechanical Contactor resemblance with covered heatsink• DIN-rail and panel mountingProductDescriptionOrdering KeyREC 2 R 48 A 2 0 G K EREC2R is a 3-phase electronic motor reversing relay. L1-T1 and L3-T3 poles are switched whileL2, T2 poleis a direct connectionfrom L2 phase to the motor. A front dual colour LED, lights green when the motor is running in the forward direction upon application of control voltage to A2-A3 termi- nals.Motor runs in the reverse direction when control voltage is applied to terminals A1- A2 andtheLED lightsred.The integratedelectronicinterlockprevents short circuit between phases in case a control signal isapplied forforward and reversedirections simultane- ouslythroughthepluggable connector on the front. In such a case REC switches off until one of the control signals is removed.REC can control motors up to7.6 AAC and goes up to 600VAC rating. An adaptor for underlyingoverloadmodules is available. Specificationsare statedat 25°C unless speci- fied.Electronic Contactor Number of switched poles Switching modeRated Operational VoltageControl voltage Motor Power rating High ITSM optionConnection type for control Connection type for power Connection configurationOrdering KeySwitching Switching Rated operationalControl voltage Motor ItsmConnectionConnection Configuration poles modevoltagepower rating controlcontrol powerREC2: 2 polesR: Reversing48: 48-530 VAC D: 24 VDC,2: 2.2kW 0: StandardG: ClampK: Screws E: Contactor-15%, + 20%3: 3.0kW Itsm R: Spring*60: 48-600 VAC A: 90 - 253 VAC* Available on requestSelection GuideRated Voltage No of PolesControl voltagePower Rating @ 400 VAC2.2kW 3.0kW48-530 VAC 224VDCREC2R48D20GKEREC2R48D30GKE90-253VAC REC2R48A20GKEREC2R48A30GKE48-600 VAC2 24VDC -REC2R60D30GKE90-253VAC-REC2R60A30GKE* According to EN61131-2Specifications are subject to change without notice (10.11.2011) 1
