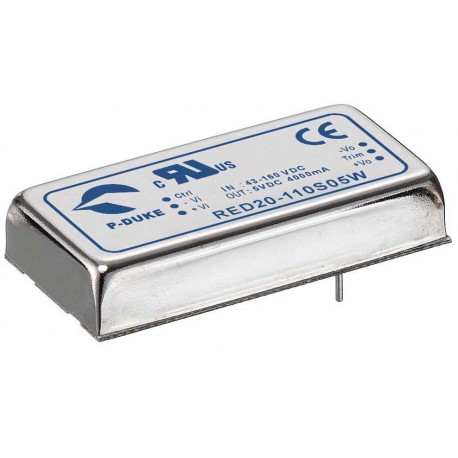

RED20-110S15W

技術仕様

パラメータ	価値
名前	RED20-110S15W
形式	For Printed Circuit
シリーズ	RED20
承認	CE, UL
電力（W）	20,00
サブフォーマット	DIP
幅（mm）	25.4
高さ（mm）	10.2
入力範囲	4:1
アプリケーション	Building automation, Rail, Industrial, Instrumentation, Telecommunications
DC入力最大	160,00
DC入力最小	43,00
メーカー	P-DUKE
製品タイプ	Dc/DC converters
隔離（V）	2.250,00
出力電圧	15,00
ピーク電力（W）	Twenty
範囲DC入力	43, 46,8, 50, 50,2, 50,4, 52, 56, 60, 62,4, 64,4, 67,2, 72, 75, 77, 88, 93,6, 100, 110, 143, 144, 150, 154, 160
入力コネクタ	Pin
長文/背景	50.8
長い説明	Dc/DC converter Rail is a Regulated Isolated Output.Converter for Railway applications, Industrial or Telecommunications.Input range43-160Vcc.Output voltage15vdc.Output intensity3APower:20W.Isolation input-output 2250Vcc.Efficiency of 89%.Dimensions (Length x Width x Height):50.8 x 25.4 x 10.2 mm.Operating temperature of the box from -40ºC up to +101ºC (see the curve derived in the technical data sheet).This converter is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.No minimum load requirement and consumption without expensive very low.It has a low noise and ripple, as well as a high efficiency and is protected against reverse polarity at the input.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush.Adjustable output voltage, through a resistance connected across the terminals of Trim 1 and Trim 2, up to 20% less than its value.Remote on / off.3 Years of warranty.Manufacturer: P-DUKE
出力コネクタ	Pin
保証期間（年）	3,00
原産国	Taiwan

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

Dc/DC converter Rail is a Regulated Isolated Output.
