RJ1P23MBT50EBC

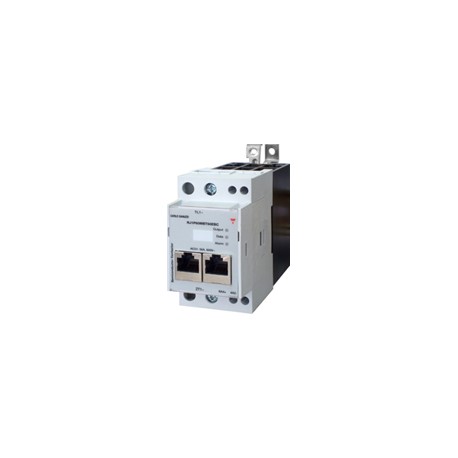

Solid State RelaysSOLITRON MIDI Modbus CommunicationInterfaceTypeRJ1PMB• AC semiconductor contactor• MODBUS RTU interface over RS485• RJ45 sockets for easy installation• Dual sockets for daisy chaining• Multi-function – 4 selectable modes of operation: ON/OFF, Phase angle, Distributed full cycle, Burst firing• Operational ratings up to 50 AACrms and 600 VAC• Temperature monitoring with over-temperature protection• Opto isolation: > 4000 VACrms• LED status indicationProduct Description Ordering KeyRJ 1 P 23 MBT 50 E BCThe RJ1P MB series is a solid state relay equipped with a fieldbus communication inter- face.The relay operates under con- trol of a microcontrollerthat handles communication, moni- tors operational parameters and controls the SSR thyristor firing.The RJ1P MB supportsTypeSelectionthe Modbus RTU communica- tion protocol, operating over an RS485 interface.The communicationinterface allows modificationand read- ing of several parameters very quicklythrougha single con- nection. Diagnostic information is easily accessible for trou- bleshooting and repair.Solid State RelayNumber of polesSwitching mode (Proportional) Rated operational voltage Control input typeRated operational current Terminal layout Configuration optionsSwitchingRated operationalControlRated operationalTerminal Options mode voltageinputcurrentlayoutP: Proportional23: 230VACrms MBT: 2-wire Modbus RTU50: 50AACrms E: ContactorBC: Basic ControllerOutput 48: 480VACrms layoutCS: Current Sensing60: 600VACrmsCV: Current & VoltageSensingSelection GuideRated operational Blocking voltage Supply voltageControl input Rated operational voltage current230VACrms650Vp 24VDC RS485 interface (2-wire)RJ1P23MBT50EBC RJ1P23MBT50ECS RJ1P23MBT50ECV480VACrms1200Vp 24VDC RS485 interface (2-wire)RJ1P48MBT50EBC RJ1P48MBT50ECS RJ1P48MBT50ECV600VACrms1200Vp 24VDC RS485 interface (2-wire)RJ1P60MBT50EBC RJ1P60MBT50ECSRJ1P60MBT50ECVThermalSpecificationsOperating temperature-30 to +70ºC (-22 to +158 ˚F) Storage temperature -40 to +100ºC (-40 to +212 ˚F)IsolationRated isolation voltageInput to output≥ 4000 VACrmsOutput to case≥ 4000 VACrmsSpecifications are subject to change without notice (04.11.2008) 1
