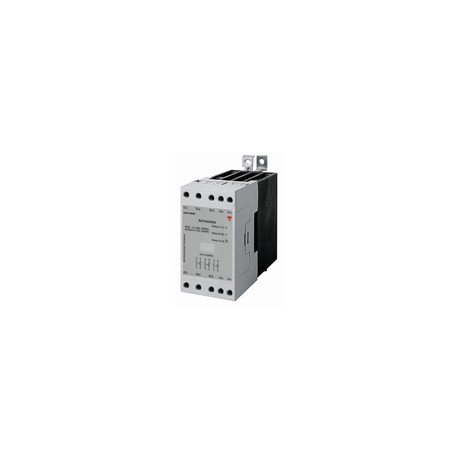

RJT3A60D20

Solid State Relays3 Independently Switched PolesIntegrated heatsinkTypeRJT3A - Trio·3 in 1 semiconductor contactor·Three control inputs - three independently switched poles·Direct copper bonding (DCB) technology·LED indication for each pole·Housing free of moulding mass·Input range: 4 – 32 VDC·Operational ratings: up to 3x25AAC, 600VAC·Blocking voltage: up to 1200Vp·Opto-isolation > 4000 VACrmsMIDIPOWERProduct DescriptionOrdering KeyRJ T 3 A 60 D25Thisproduct isdesignedin such a way as to replace elec- tro-mechanical contactors, especially when switching is frequent. It has an integrated heatsink and over-voltage pro- tection. The heatsink is moved to the back for optimal space saving in the panel and easy wire mounting at the front of the relay.The relay with antiparallelthyristoroutputcanbe used for resistive and inductive loads.RJT3A comes with 3 indepen- dently controlled poles, with three LEDs to indicatestatus of each control input.Each zero switching relay switchesON whenthesinu- soidal curve crosses zero and switchesOFF whenthecur- rent crosses zero.Solid state relayThree-in-one (Trio)Number of switching polesSwitching modeRated operational voltageControl voltageRated operational currentTypeselectionSwitching modeRated operational voltageControl voltage Rated operational currentA: Zero switching23: 230 VACrmsD: 4 - 32 VDC 20: 3 x 20 AACrms(MIDI)60: 600 VACrms 25: 3 x 25 AACrms (POWER)Selection GuideRated operationalControl voltageRated operational currentvoltage3 x 20 (MIDI)3 x 25 (POWER)230 VACrms 4-32VDC RJT3A23D20 RJT3A23D25600 VACrms 4-32VDC RJT3A60D20 RJT3A60D25General SpecificationsRJT3A23... RJT3A60...Operational voltage range 24 - 280 VAC48 - 660 VAC Blocking voltage650 Vp 1200 Vp Operational frequency range 45 - 65 Hz 45 - 65 HzPower factor³ 0.5 @ 230 VACrms³ 0.5 @ 600 VACrmsApprovals UL, cUL UL, cUL CE-markingYesYesPollution degree22Specifications are subject to change without notice (28.02.2007) 1
