在庫あり 注目商品
RPS-400-12-C

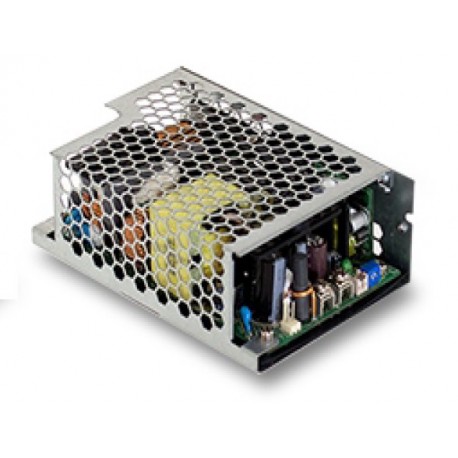

RPS-400-12-C MEANWELL AC-DC Open frame Medical power supply, Output 12VDC / 33.3A, EN60601 2xMOPP, with case
$0.00米ドル
4467 在庫あり
主な仕様
名前:RPS-400-12-C
州:Recommended Model
アラーム:Powerfail, Output OK
形式:Box
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | RPS-400-12-C |
| 州 | Recommended Model |
| アラーム | Powerfail, Output OK |
| 形式 | Box |
| シリーズ | RPS-400-C |
| 承認 | CE, EN60601 3rd Edition, UL |
| 電力（W） | 249,60 |
| サブフォーマット | Grid |
| 幅（mm） | 86.6 |
| 高さ（mm） | Forty three |
| AC入力最大 | 264,00 |
| AC入力最小 | 80,00 |
| アプリケーション | Industrial, Medical, Telecommunications |
| メーカー | MEAN WELL |
| 製品タイプ | Power supply AC/DC |
| 隔離（V） | 4.000,00 |
| 出力電圧 | 12,00 |
| ピーク電力（W） | 249.6 |
| 入力コネクタ | Plug-in |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | One hundred thirty |
| 長い説明 | Medical power supply in a grid format.Source certified for medical applications 2x MOPP (patient protection).Open format (open-frame).Range of universal input80-264vac.47-63Hz.Output voltage12vdc.Adjustable by potentiometer (11,4-12,6 Vdc).Output intensityAbout 20.8 To. Range of output current 0-20,8 according To the demand load.Power:249,6 W.Efficiency typical:91,5%.Factor Corrector, Power>0,94to 230vac and full load.Remote on / off output ausiliar 5V 0.6 A.Alarm output voltage correct (DC-Ok) and network failure (Power fail).Function of sensing to compensate the voltage drop in the cables.Low leakage current to ground < 200µA at 264vac, and low contact current < 100µA at 264vac.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:130 x 86,6 x 43.3 years of warranty.Manufacturer: MEAN WELL.The series RPS-400 are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP and protection between input and ground 1xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan.These sources can be used for medical applications BF (body floating) with the necessary considerations of the system and for industrial applications, and information technology. |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 3,00 |
| 原産国 | China |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Medical power supply in a grid format.
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
