RSD-300B-48

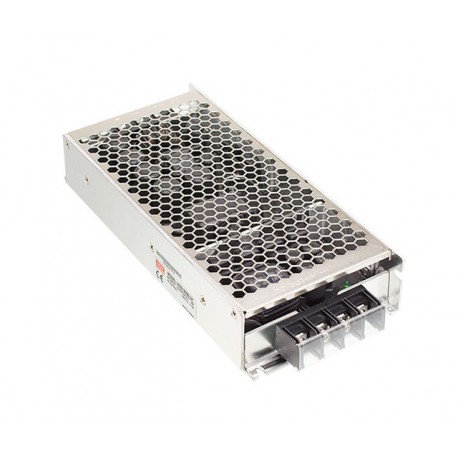

RSD-300B-48 MEANWELL DC-DC Enclosed converter, Input 14.4-33.6VDC, Output +48VDC / 5.7A, railway standard EN..
$124.23米ドル
128 在庫あり
主な仕様
名前:RSD-300B-48
州:Recommended Model
形式:Box
シリーズ:RSD-300
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | RSD-300B-48 |
| 州 | Recommended Model |
| 形式 | Box |
| シリーズ | RSD-300 |
| 承認 | EC |
| 電力（W） | 273,60 |
| サブフォーマット | IP20 |
| 幅（mm） | 97.00 |
| 高さ（mm） | 40.00 |
| 入力範囲 | 2:1 |
| アプリケーション | Railway, Industrial, Telecommunications |
| DC入力最大 | 31,20 |
| DC入力最小 | 16,80 |
| メーカー | MEAN WELL |
| 製品タイプ | Dc/DC converters |
| 隔離（V） | 4.000,00 |
| 出力電圧 | 48,00 |
| ピーク電力（W） | 273.6 |
| 範囲DC入力 | 16,8, 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2 |
| 入力コネクタ | Screw-Type |
| 長文/背景 | 216.00 |
| 長い説明 | Dc/DC converter rail is a regulated isolated output.Converter for railway applications, industrial or telecommunications.Input range16,8-31,2 Vdc(14,4-33,6 Vdc for 1 second). Range rail to 24V input.Output voltage48vdc.Output intensityThe 5.7 A.Power:273,6 W.Isolation input-output 4000Vcc.Efficiency of the91,5%.Operating temperature from-40up+70 ° C(see the curve derived in the technical data sheet). 85 ° c for 10 minutes with ventilation by conduction.Dimensions (Length x Width x Height):216 x 97 x 40mm.3 years of warranty.Manufacturer: MEAN WELL.It is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.Can operate up to 55C at full load and 70 ° C at 60% load or 70 ° C ambient temperature with ventilation by driving without losses. Also supports a temperature range of more demanding level rail Tx to 85ºC ambient temperature for 10 minutes with ventilation by driving on a metal surface.This converter semi-encapsulation has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 40mm and uses only components prepared for high temperatures as for example capacitors of 105ºC.It has a low noise and ripple, and high efficiency and is protected against reverse polarity at the input. The inrush current is limited by a resistor in series with a MOSFET to reduce the peak starting current to reliably regardless of the ambient temperature.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush. |
| 出力コネクタ | Screw-Type |
| 保証期間（年） | 3,00 |
| 原産国 | Taiwan |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Dc/DC converter rail is a regulated isolated output.
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
