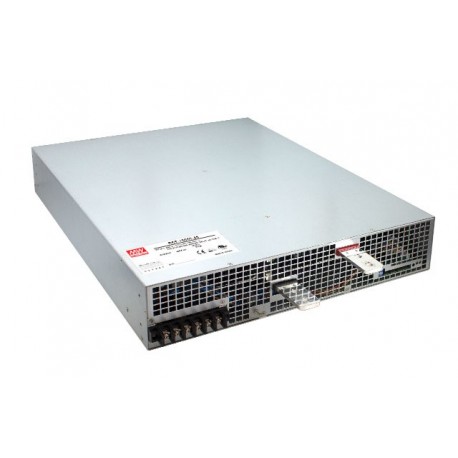

RST-10000-24
RST-10000-24 MEANWELL AC-DC Single output power supply with PFC, 3 wire 196-305 or 4 wire 340-530 VAC, Outpu..
$0.00米ドル
3051 在庫あり
主な仕様
ファン:Yes
名前:RST-10000-24
アラーム:Over Temperature, mains Failure, Output OK
形式:Box
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| ファン | Yes |
| 名前 | RST-10000-24 |
| アラーム | Over Temperature, mains Failure, Output OK |
| 形式 | Box |
| シリーズ | RST-10000 |
| 承認 | CE, UL |
| 電力（W） | 9.600,00 |
| サブフォーマット | Grid |
| 幅（mm） | 424.00 |
| 高さ（mm） | 83.50 |
| AC入力最大 | 530,00 |
| AC入力最小 | 340,00 |
| アプリケーション | Industrial, Telecommunications |
| メーカー | MEAN WELL |
| 製品タイプ | Power supply AC/DC |
| 隔離（V） | 3.000,00 |
| 出力電圧 | 24,00 |
| ピーク電力（W） | Nine thousand six hundred |
| 入力コネクタ | Screw-Type |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 540.00 |
| 長い説明 | Switch mode power supply three-phase.Format in box.Input rangeThree-phase Star with Neutral3x340-530Vcaor Input three-Phase Delta without Neutral 3 x 196-305Vca. 47-63Hz.You need the neutral to operate on three-phase to 380V.Output voltage24vdc. Adjustable by potentiometer (23,5-28,8 Vdc).Output intensity400A. Range of output current 0-400A according to demand load.Factor Corrector, Power>0,95.Power:Nine thousand six hundredW.Efficiency typical:89%.Remote on / off.Additional output of 12V 0,1 A for power-on and remote shutdown.Function of sensing to compensate the voltage drop in the cables up to 0.3 V.Alarm output voltage to the correct DC-Ok, power supply failure AC-Fail and fan failure Fan-Fail.Voltage and Current programmable Output.Paralelizable up to 2 units.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:540 x 424 x 83.5.5 years of warranty.Manufacturer: MEAN WELL.The series RST-10000 with switching power supplies with three phase input. Have a high efficiency and power factor.We can parallelize up to 2 units to increase power or achieve redundancy.The output voltage can be set between 20%and 120% of the nominal output voltage by an external signal of 1-6v.The output current can also be programmed between 20% and 100% of its value payroll with an external signal of 1-5vdc.The behavior before an over-load can be set to keep the current constant by reducing the output voltage or power-off after 5 seconds of the overload. |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Three-Phase + Neutral |
| 保証期間（年） | 5,00 |
| 原産国 | Taiwan |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Switch mode power supply three-phase.
