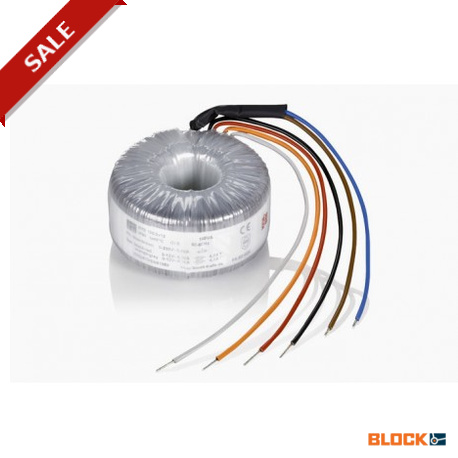

RTE 330/2x18

General Data Rated input voltage 230 Vac Rated output voltage 2 x 12 ‑ 2 x 35 Vac Power 15 ‑ 625 VA Insulation class B Maximum ambient temperature 40 °C Efficiency up to 95 % Degree of protection IP 00 Advantages Minimum size at high output Low weight Double output voltage for series or parallel connection Protected against overload by integral temperature fuse Minimal no‑load losses Outstanding temperature behaviour thanks to low magnetic leakage field Very low noise field Standards Mains transformerto: VDE 0570 Teil 2‑1, DIN EN 61558‑2‑1, EN 61558‑2‑1, IEC 61558‑2‑1, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformerto: VDE 0570 Teil 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66 Isolating transformerto: VDE 0570 Part2‑4, DIN EN 61558‑2‑4, EN 61558‑2‑4, IEC 61558‑2‑4, UL 5085‑1/‑2, CSA 22.2 No.66 Approvals UL 5085‑1/‑2, CSA 22.2 No.66 As a mains transformerfor adjustment of the voltage and simple electrical isolation. As an isolating transformer as specified in EN 61558-2-6 for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100. As a safety isolating transformer as specified in EN 61558-2-6 for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
