S8VM-15024

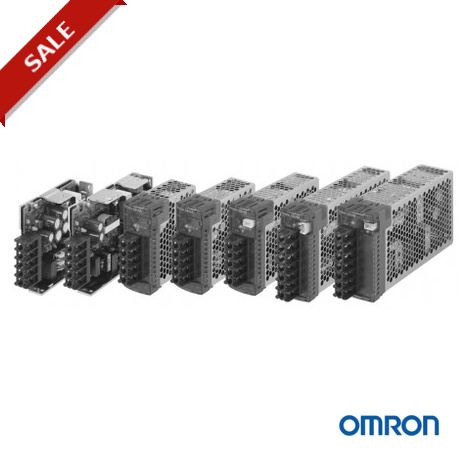

Switch Mode Power SupplyS8VM (15/30/50/100/150-W Models)Power Supply Featuring OMRON’s Unique, New Undervoltage Alarm Function with Compact Body Contributing to Machine Downsizing• New undervoltage alarm function assists in determining causes of errors (S8VM-@@@24A@/P@ only).• Broad range of possibilities with 5 capacities and 20 models to choose from.• RoHS compliant, including lead-free construction.• Safety standards:UL508/60950-1/1604, CSA C22.2 No. 14/No. 60950-1/No. 213,EN50178, EN60950-1• Harmonic current emissions: Conforms to EN61000-3-2.• New, attentive design prevents screws from falling out of terminal block.• Finger protection prevents electric shock.• DIN Rail mounting.Note: Refer to Precautions for Safe Use on page 19.Model Number Structure■ Model Number LegendNote: 300- to 1,500-W models will be released in 2006.Note: Not all combinations are possible. Please refer to the list of models in Ordering Information on page 2.S8VM- @@@@@@@1 2 3 41. Power Ratings015: 15 W030: 30 W050: 50 W100: 100 W150: 150 W2. Output voltage05: 5 V12: 12 V15: 15 V24: 24 V3. Configuration/functionNone: Open-frame type Standard typeC: Covered type Standard typeA: Covered type Undervoltage alarm type (Sinking) (See note.)P: Covered type Undervoltage alarm type (Sourcing) (See note.)4. ConfigurationNone Front-mounting typeD DIN Rail mounting bracket typeNote: 1. The front-mounting type cannot be used as a back-mounting type. For a back-mounting configuration, use a DIN Rail mounting bracket type.2. The housing and terminal of the connector for the undervoltage alarm output are provided with the S8VM-05024A@/P@, S8VM-10024A@/P@ and S8VM-15024A@/[email protected] Mode Power Supply S8VM 1
