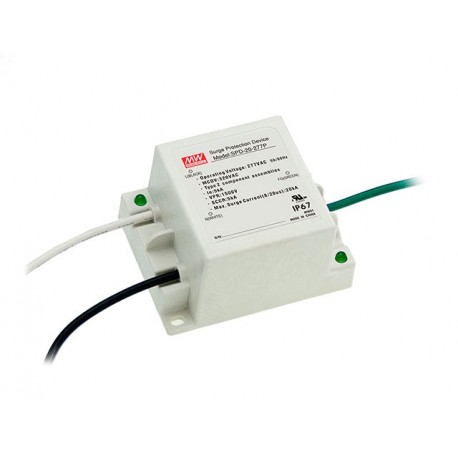

SPD-20-277P

技術仕様

パラメータ	価値
名前	SPD-20-277P
形式	Din Rail
シリーズ	SPD-20
承認	UL
サブフォーマット	IP67
幅（mm）	70.00
高さ（mm）	50.00
AC入力最大	320,00
アプリケーション	Building automation, Lighting, household Appliances, Industrial, Medical, Solar, Telecommunications
メーカー	MEAN WELL
製品タイプ	Protector against Transient
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	90.00
長い説明	Protector of transients.Format box of waterproof plasticIP67.Input voltage nominal277Vca. 47-63Hz.Maximum working voltage continuous320Vca.Voltage protectionrated1500V(between line-to-ground, neutral-to-ground and line-to-neutral).Rated discharge 5kA.Maximum transient current 20kA.Time of response <25ns.Connection in parallel with the electric grid.Led indicator of operation.Working temperature: from-40ºCup+70 ° Cof ambient temperature.Dimensions (Length x Width x Height) [mm]:90 x 70 x 50.3 years of warranty.Manufacturer: MEAN WELL.The protectors series SDP are devices designed to protect sensitive equipment of an installation when we have problems with the electric grid. Transients or voltage surges of high intensity is typically occur on the electrical network due to sudden changes in consumption or other problems of an electrical supply. This generates an overvoltage in the electrical network of high energy that can damage connected equipment. The series SPD-20 allow us to protect any sensitive electronic equipment like e.g. transformers LED or LED drivers in lighting public or connected equipment in areas with common problems on the electrical network such as industrial estates.The installation is performed in parallel with the electric grid so that we don't have to connect a protective device but a by-line and can be mounted easily on a Din rail and the led indicator of operation visible.For its proper functioning, we must have a good grounding already in case of overvoltage, the excess energy was derived to the earth. We must have an impedance less than 3 ohms to ground to work properly.This team doesn't protect us in case of caiía beam direct that can generate a voltage of more than a million volts. For this type of problem, there are protectors specifically for ray.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	3,00
原産国	China
電圧保護	1.500,00
出力最大強度（mA）	20.000.000,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

Protector of transients.

製品資料

データシート

技術仕様と性能データ

ユーザーマニュアル

設置・操作ガイド
