TLC87035V

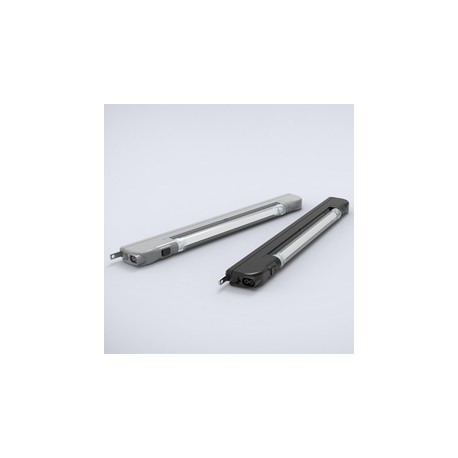

TLC87035V ELDON Light 8W 110-240V 50/60Hz TLC87035V
$0.00米ドル
4461 在庫あり
主な仕様
仕上げる:Light grey (RAL 7035)
特徴:
動作電圧:100-240 V, 50/60 Hz
利点: (機能):The enclosure light provides customers with a flexible solution as it can be mounted to any metallic surface or directly to 19" profiles. The light ensures both, operation and maintenance procedures can be performed safely, in the field.
サプライヤー情報
ELDON
製品: 4827
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 仕上げる | Light grey (RAL 7035) |
| 特徴 | |
| 動作電圧 | 100-240 V, 50/60 Hz |
| 利点: (機能) | The enclosure light provides customers with a flexible solution as it can be mounted to any metallic surface or directly to 19" profiles. The light ensures both, operation and maintenance procedures can be performed safely, in the field. |
| コメント: (特徴) | Highly recommended to install the door switch, TLCS, to improve the enclosure's energy consumption. |
| 機能: (機能) | Energy saving compact fluorescent enclosure light, with multiple mounting methods. Available with different voltages and frequencies. |
| 利点: (特徴) | Off the shelf enclosure light, can be installed into enclosures that are located within different countries. The light can be easily mounted onto the enclosure's surface by either magnets, screwed directly onto the enclosures or profiles hole pattern, or clicked into 19" profiles. |
| ドキュメント（PDF）（機能） | EAC |
| 配送：（技術データ） | 1 light with fix mounted connection cable, integrated magnets and mounting screws. |
| 承認: (技術データ) | CE, EAC. |
| ランプタイプ: (技術データ) | Fluorescent lamp T5/G5. |
| 寸法: (技術データ) | 448 x 54.5 x 26 mm. |
| 輝度: (技術データ) | 480 Lm. |
| 接続: (技術データ) | 2x0.75 mm² open end cable (1.5 m long), 2x0.75 mm² female mini-connector for door switch use. |
| 説明: (技術データ) | Lighting system with a compact design, suitable for all types of enclosures or racks. It has three possible fixing possibilities: magnetically, screw mounting with a variable distance between holes and/or snap-into 19” rack. It is an electronically operated device and has a service life of 10,000 h. The body of the lighting system is made of PC-ABS. An integrated connector allows the activation of the lamp by a door switch by using the TLCS product without performing any additional wiring. It is provided with a protection cap made of PC and the colour of the light is cold white. |
| 消費電力: (技術データ) | 8 W. |
| 動作温度: (技術データ) | -15 ºC to +45 ºC. |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
This energy efficient fluorescent enclosure light can be mounted in many different ways, as well as directly on 19" profiles, in any enclosure, and helps when maintenance is performed in the field.
