在庫あり 注目商品
UCX442Z

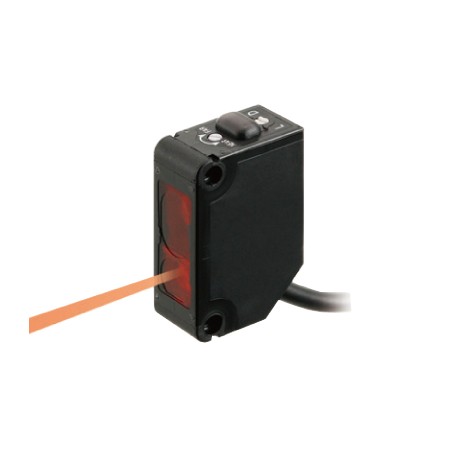

UCX442Z CX442Z CX-442-Z PANASONIC Trigonometric diffuse reflective type, 2-30mm, NPN, M8-connector
$0.00米ドル
3325 在庫あり
主な仕様
アイテム:Specifications
出力:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
詳細:Adjustable range reflective
製品:Compact Photoelectric Sensor
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| 出力 | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
| 詳細 | Adjustable range reflective |
| 製品 | Compact Photoelectric Sensor |
| 材料 | Enclosure: PBT (Polybutylene terephthalate)Front cover: PolycarbonateIndicator cover: Polycarbonate |
| ヒステリシス | 5 % or less of operation distance(with white non-glossy paper) |
| 保護 | IP67 (IEC) |
| 部品番号 | CX-442-Z |
| 製品名 | Compact Photoelectric Sensor CX-400 Ver.2 |
| センシングモード | BGS / FGS functions switchable with wiring of sensing mode selection input |
| 再現性 | Along sensing axis: 1 mm0.039 inor less, Perpendicular to sensing axis: 0.2 mm0.008 inor less (with white non-glossy paper) |
| 応答時間 | 1 ms or less |
| スポット径 | Ø15 mmØ0.591 inapprox.(at 300 mm11.811 indistance) |
| 製品番号 | CX-442-Z |
| 供給電圧 | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| 調整可能な範囲 | 40 to 300 mm1.575 to11.811 in(Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm0.079 in[CX-444(-P): 15 mm0.591 in, CX-442(-P): 20 mm0.787 in], or more, away. |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 耐衝撃性 | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| 距離調整器 | 5-turn mechanical adjuster |
| 周囲照度 | Incandescent light: 3,000 lx or less at the light-receiving face |
| 周囲温度 | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
| 消費電流 | 20 mA or less |
| 操作インジケーター | Orange LED (lights up when the output is ON) |
| 安定性インジケーター | Green LED(lights up under stable operating condition) |
| 耐振動性 | 10 to 500 Hz frequency, 3 mm0.118 inamplitude in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 出力:出力操作 | Switchable either Detection-ON or Detection-OFF |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| 発光素子（変調） | Red LED |
| CEマーキング指令への準拠 | EMC Directive, RoHS Directive |
| 出力:短絡保護 | Incorporated |
| 自動干渉防止機能 | Incorporated(Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object. |
| 検知範囲（白色無光沢紙使用時） | 20 to 300 mm0.787 to11.811 in |
| 発光素子（変調）:ピーク発光波長 | 650 nm0.026 mil |
製品説明
Compact photoelectric sensor, direct reflection background suppressor, detection range 20 to 300 mm, BGS and FGS functions, spot 15mm, NPN output, M8 connector
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
