UCX481PZ

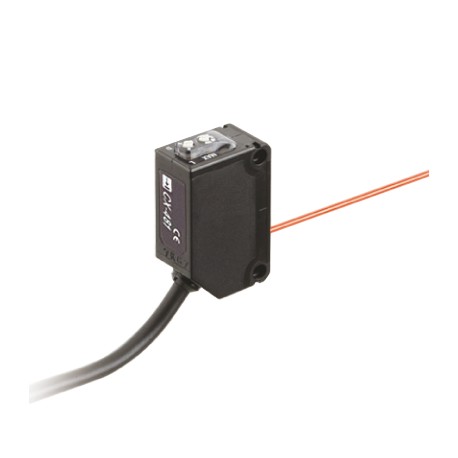

UCX481PZ CX481PZ CX-481-P-Z PANASONIC Retroreflective, 500mm, PNP, M8 connector
$0.00米ドル
4386 在庫あり
主な仕様
アイテム:Specifications
出力:PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current)
詳細:Retroreflective(For transparent object sensing)
製品:Compact Photoelectric Sensor
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| 出力 | PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current) |
| 詳細 | Retroreflective(For transparent object sensing) |
| 製品 | Compact Photoelectric Sensor |
| 材料 | Enclosure: PBT (polybutylene terephthalate)Lens: polycarbonateIndicator cover: polycarbonate |
| アクセサリー | RF-230 (Reflector): 1 pc. |
| ヒステリシス | - |
| 保護 | IP67 (IEC) |
| 部品番号 | CX-481-P-Z |
| 製品名 | Compact Photoelectric Sensor CX-400 Ver.2 |
| 応答時間 | 1 ms or less |
| 検知範囲 | 50 to 500 mm1.969 to 19.685 in(Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor. |
| 製品番号 | CX-481-P-Z |
| 検知対象 | Ø50 mmØ1.969 inor more transparent,translucent or opaque object(Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.(Note) Make sure to confirm detection with an actual sensor before use. |
| 供給電圧 | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| 電源インジケーター | - |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 耐衝撃性 | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| 周囲照度 | Incandescent light: 3,000 lx or less at the light-receiving face |
| 周囲温度 | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
| 消費電流 | 10 mA or less |
| 操作インジケーター | Orange LED(lights up when the output is ON)(incorporated on the receiver for thru-beam type) |
| 安定性インジケーター | Green LED(lights up under stable light received condition or stable dark condition)(incorporated on the receiver for thru-beam type) |
| 感度調整器 | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
| 耐振動性 | 10 to 500 Hz frequency, 1.5 mm0.059 inamplitude (10 G max.) in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 出力:出力操作 | Switchable either Light-ON or Dark-ON |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| 発光素子（変調） | Infrared LED |
| CEマーキング指令への準拠 | EMC Directive, RoHS Directive |
| 出力:短絡保護 | Incorporated |
| 自動干渉防止機能 | Incorporated(Two units of sensors can be mounted close together.) |
| 繰り返し精度（センシング軸に垂直） | 0.5 mm0.020 inor less |
| 発光素子（変調）:ピーク発光波長 | 870 nm0.034 mil |
製品説明
Compact photoelectric sensor, reflection on mirror, TRANSPARENT OBJECTS, 500mm, PNP, M8 connector
