UDP125100N

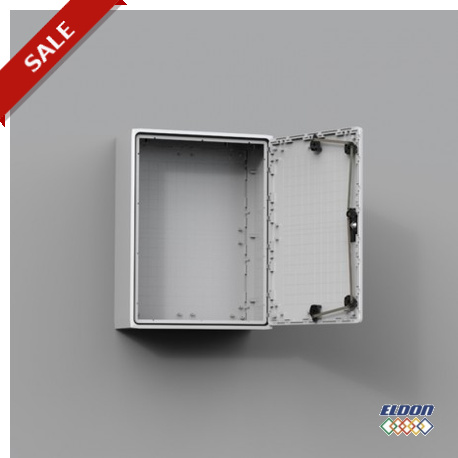

UDP125100N ELDON Wall mounted, 500+750x1000x320
$0.00米ドル
4519 在庫あり
主な仕様
注記:Plain double door
体：:Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets, to a pole by use of EPF or to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In single plain door enclosures, sealing is ensured by an EPDM gasket glued against the frame.
深さ:320 mm
ドア：:Flush mounted door with or without window and 100º opening. For larger sizes a door support is supplied for easier closing. In double door enclosures, sealing is ensured by an injected one piece polyurethane gasket.
サプライヤー情報
ELDON
製品: 4827
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 注記 | Plain double door |
| 体： | Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets, to a pole by use of EPF or to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In single plain door enclosures, sealing is ensured by an EPDM gasket glued against the frame. |
| 深さ | 320 mm |
| ドア： | Flush mounted door with or without window and 100º opening. For larger sizes a door support is supplied for easier closing. In double door enclosures, sealing is ensured by an injected one piece polyurethane gasket. |
| ロック： | Premounted handle suitable for all types of half cylinder locks (standard depth of 40 mm). Five locking points (three points in 500 mm width enclosures). |
| 幅 | 1000 mm |
| 身長 | 500+750 mm |
| 重さ | 40,00 Kg |
| 仕上げる： | RAL 7035, precoloured raw material. |
| 配達： | Enclosure with door, fixing screws for the mounting plate and wall mounting brackets. (Lock cylinder is not included in the delivery). |
| 材料： | Fibre-glass reinforced polyester. UDPT viewing area: polycarbonate. |
| 承認: | CE, CSA, GOST and cULus_listed. For further approvals, please contact nVent HOFFMAN`s sales department. |
| 保護： | Complies with IP 65 TYPE 4, 4X, 12, 13 for single door enclosures / IP 54 TYPE 4, 4X, 12, 13 for double door and transparent door enclosures. Impact resistance IK 10 (IK 07 for enclosures with transparent door). |
| ドアの数 | 2 |
| 特徴 | |
| 特徴: | Self extinguishing and halogen free. Double isolated according to EN61439-1. Rated insulation voltage Ui=1000V. |
| 耐熱性: | -50°C to 70°C in continuous use (peak temperatures up to 150ºC). |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
The polyester range of modular enclosures, conforms to IP 65 for single door and IP 54 for double door enclosures. The modular enclosures are a fibre-glass reinforced polyester design with double insulation offering the users maximum safety. Different modular enclosures can be combined together to achieve larger configurations.
