UERX001

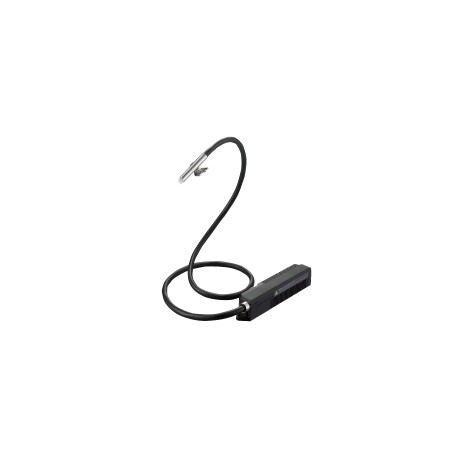

UERX001 ER-X001 PANASONIC Wide-area, high speed ionizer-head, spot type, charge removal time 1sec, ion balan..
$0.00米ドル
3518 在庫あり
主な仕様
アイテム:Specifications
重さ:Net weight : 370 g approx.
詳細:Head
製品:Pulse AC Method Area Ionizer
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| 重さ | Net weight : 370 g approx. |
| 詳細 | Head |
| 製品 | Pulse AC Method Area Ionizer |
| 材料 | Main unit enclosure: Stainless steal (SUS)Head mounting bracket: Stainless steal (SUS)Discharge needle: PFA, Tungsten |
| アクセサリー | Head mounting bracket (installed at the time of factory shipment) |
| イオンバランス | ±30 V or less(Note 1：Typical value in condition of discharge distance 100 mm3.937 in, center of the product, discharge frequency 30 Hz and no air supply.)(Note 2： Ion balance refers to the average value of plus and minus. The specification value is the typical one in condition used when ambient temperature change is less than ±10 ℃, ion balance is set after 30 minutes from the discharge start, the ion balance control function is set ON.) |
| 部品番号 | ER-X001 |
| 製品名 | Pulse AC Method Area Ionizer ER-X |
| 製品番号 | ER-X001 |
| 周囲の湿度 | 35 to 65 % RH, Storage: 35 to 85 % RH |
| 適用流体 | Air (dried clean air)(Note：The dried clean air is the air dried (dew point: equivalent of -20 ℃-4 ℉) and filtered (mesh-size: equivalent of 0.01 μm) .) |
| 排出方法 | Pulse AC method(Note：The discharge frequencies of 50 Hz, 20 Hz are accepted.) |
| オゾン生成 | 0.01 ppm or less(Note：Typical value in condition of discharge distance 50 mm1.969 in, center of the product, discharge wavelength 50 Hz and no air supply.) |
| 耐衝撃性 | 100 m/s2acceleration (10 G approx.), in X, Y and Z directions three times each |
| 筐体アース | Floating |
| 動作高度 | 2,000 m6561.68 ftor less(Note：Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.) |
| 周囲温度 | 0 to +40 ℃+32 to +104 ℉(No dew condensation), Storage: -10 to +65℃+14 to +149℉ |
| 電荷除去時間 | 0.3 sec. or less (Note 1), 0.5 sec. or less (Note 2)(Note 1： Typical value in condition of discharge distance 50 mm1.969 in, center of the product, discharge wavelength 50 Hz and air supply 60 ℓ / min. (0.3 MPa)) .(Note 2： Typical value in condition of discharge distance 50 mm1.969 in, center of the product, discharge wavelength 50 Hz and no air supply.) |
| 放電頻度 | 50 Hz / 20 Hz |
| 最大空気圧 | 0.5 MPa |
| 耐振動性 | 10 to 55 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| 適用される規制 | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), TÜV SÜD certification (USA, Canada) |
| 放電出力電圧 | ±7,000 V approx. |
| 高電圧ケーブルの長さ | 1.2 m3.937 ft |
| 有効電荷除去幅 | 50 mm1.969 inapprox. |
製品説明
ER-X ionizer, wide area, high speed, spot spot, charge removal time < 1sec, ion balance max. ± 30V, voltage discharge output approx. 7kV
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
