UEX19SBPN

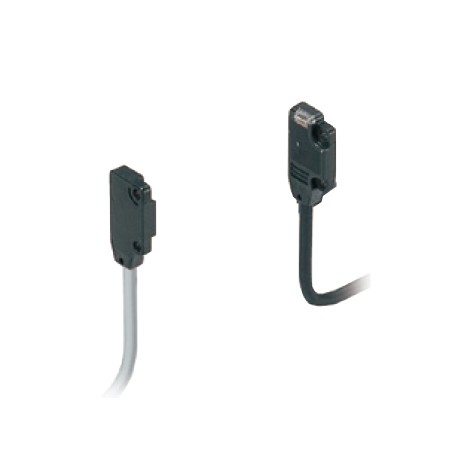

UEX19SBPN EX-19SB-PN PANASONIC Thru beam, front sensing, 1m, Dark-ON, PNP, cable 2m
$0.00米ドル
3685 在庫あり
主な仕様
アイテム:Specifications
ケーブル:0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
出力:PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
重さ:Net weight (each emitter and receiver): 20 g approxGross weight: 50 g approx
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | 0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long |
| 出力 | PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| 重さ | Net weight (each emitter and receiver): 20 g approxGross weight: 50 g approx |
| 詳細 | Thru-beam･Narrow Beam [Front sensing] |
| 製品 | Ultra-slim Photoelectric Sensor |
| 材料 | Enclosure: PolyarylateLens: Polyarylate |
| アクセサリー | Mounting screws: 1 set |
| ヒステリシス | - |
| 保護 | IP67 (IEC) |
| 部品番号 | EX-19SB-PN |
| 製品名 | Amplifier built-in Ultra-slim Photoelectric Sensor EX-10S |
| 認証 | UL certification |
| 応答時間 | 0.5 ms or less |
| 検知範囲 | 1 m 3.281 ft |
| 製品番号 | EX-19SB-PN |
| 供給電圧 | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| ケーブル延長 | Extension up to total 50 m164 ftis possible with 0.3 mm2, or more, cable (emitter and receiver).(Note) : For safety applications, do not exceed 30 m98.425 ft. |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 発光要素 | Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated) |
| 汚染度 | 3 (Industrial environment) |
| 耐衝撃性 | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions for three times each |
| 周囲照度 | Incandescent light: 3,000 lx at the light-receiving face |
| 周囲温度 | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
| 消費電流 | Emitter: 10 mA or lessReceiver: 10 mA or less |
| 最小検知物体 | dia. 2.0 mm dia. 0.078 in opaque object (Completely beam interrupted object)(Note) : The min. sensing objects are specified in case the emitter / reciever sensing range is to set the maximum. |
| 操作インジケーター | Orange LED (lights up when the output is ON) |
| 安定性インジケーター | Green LED (lights up under stable light received condition or stable dark condition) |
| 耐振動性 | 10 to 500 Hz frequency, 3 mm 0.118 in amplitude (20 G max.) in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 規制遵守 | ・EMC Directive ： EN 60947-5-2・RoHS Directive・ISO 13849-1 (Category 1, PLc) (Note)(Note) : Conformed from December 2021 production. |
| 入射ビームインジケーター | - |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| 出力:利用カテゴリ | DC-12 or DC-13 |
| 出力:短絡保護 | Incorporated |
| 繰り返し精度（センシング軸に垂直） | 0.05 mm 0.002 in or less |
製品説明
Ultra-miniature photoelectric sensor, narrow beam, barrier, front detection, range 1 m., operation in darkness, PNP, cable 2m, dimensions 10 x 14.5 x 3.5 mm.
