UEX32APN

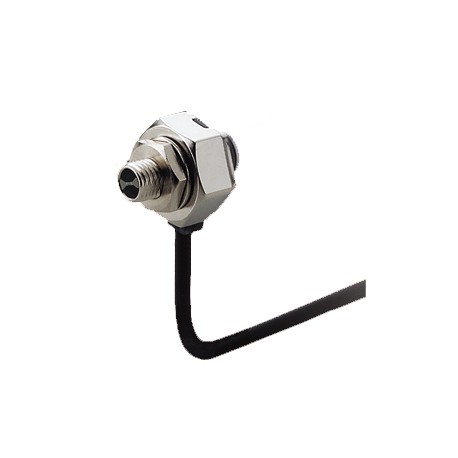

UEX32APN EX32APN EX-32A-PN PANASONIC Diffuse reflective, 50mm, light-ON, PNP, 2m cable
$0.00米ドル
3516 在庫あり
主な仕様
アイテム:Specifications
ケーブル:0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long
出力:PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
重さ:Net weight: 20 g approxGross weight: 30 g approx
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | 0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long |
| 出力 | PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| 重さ | Net weight: 20 g approxGross weight: 30 g approx |
| 詳細 | Diffuse reflective |
| 製品 | Threaded Miniature Photoelectric Sensor |
| 材料 | Enclosure: Die-cast zinc (Nickel plated)Lens: AcrylicEnclosure cover: Polycarbonate |
| アクセサリー | Nut: 1 pcToothed lock washer: 1 pc |
| ヒステリシス | 15 % or less of operation distance(Note) The sensing range and the hysteresis are specified for white non-glossy paper (100 x 100 mm 3.937 x 3.937 in) as the object. |
| 保護 | IP67 (IEC) |
| 部品番号 | EX-32A-PN |
| 製品名 | Threaded Miniature Photoelectric Sensor EX-30 Ver.2 |
| 応答時間 | 0.5 ms or less |
| 検知範囲 | 50 mm 1.969 in(Note) The sensing range and the hysteresis are specified for white non-glossy paper (100 x 100 mm 3.937 x 3.937 in) as the object. |
| 製品番号 | EX-32A-PN |
| 検知対象 | Opaque, translucent or transparent object(Note) Make sure to confirm detection with an actual sensor before use. |
| 供給電圧 | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| ケーブル延長 | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable. |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 発光要素 | Red LED (modulated) |
| 汚染度 | 3 (Industrial environment) |
| 耐衝撃性 | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| 周囲照度 | Incandescent light: 3,000 lx or less at the light-receiving face |
| 周囲温度 | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
| 消費電流 | 13 mA or less |
| 操作インジケーター | Orange LED (lights up when the output is ON) |
| 安定性インジケーター | Green LED (lights up under stable light received condition orstable dark condition) |
| 感度調整器 | Continuously variable adjuster |
| 耐振動性 | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 出力:出力操作 | Light-ON |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| 出力:利用カテゴリ | DC-12 or DC-13 |
| CEマーキング指令への準拠 | EMC Directive, RoHS Directive |
| 出力:短絡保護 | Incorporated |
| 繰り返し精度（センシング軸に垂直） | 0.5 mm 0.020 in or less |
製品説明
Photoelectric sensor threaded model, direct reflection, 50 mm, PNP, light operation, 12-24 VDC, M6 thread
