UEXF62PN

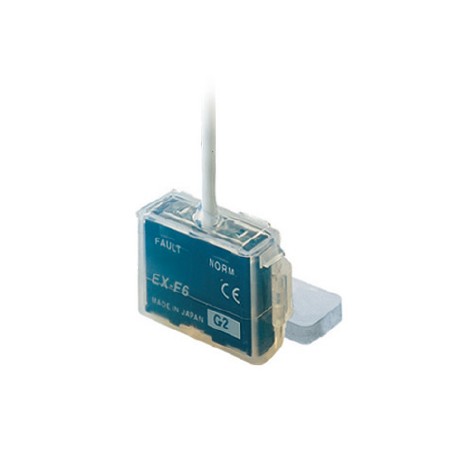

UEXF62PN EXF62PN EX-F62-PN PANASONIC Chemical resistant leak sensor, PVC mounting, PNP, 12-24VDC
$0.00米ドル
3362 在庫あり
主な仕様
アイテム:Specifications
出力:PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1.0 V or less (at 50 mA source current), 0.4 V or less (at 16 mA source current)
詳細:Chemical-resistant
製品:Leak Detection Sensor
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| 出力 | PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1.0 V or less (at 50 mA source current), 0.4 V or less (at 16 mA source current) |
| 詳細 | Chemical-resistant |
| 製品 | Leak Detection Sensor |
| 材料 | Enclosure: PFA |
| 保護 | IP67 (IEC) |
| 部品番号 | EX-F62-PN |
| 製品名 | Leak Detection Sensor EX-F70/EX-F60 |
| 応答時間 | 50 ms or less |
| 製品番号 | EX-F62-PN |
| 検知対象 | Agent, such as Sulfuric acid, Hydrochloric acid, Phosphoric acid or Ammonia etc.Note : Highly viscous liquid may not be detected stably.Note : The agents mentioned above are examples. For details, please contact our office.Note : PVC mounting bracket may not be used depending on type or viscosity etc. of the agent. For details, please contact our office. |
| 供給電圧 | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| ケーブル延長 | Extension up to total 50 m164.042 ft |
| FAULTインジケーター | Red LED (lights up when the leak liquid is detected, or the sensor is mounted improperly) |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 発光要素 | Infrared LED (non-modulated) |
| 正常インジケーター | Green LED (lights up when the sensor is mounted properly) |
| 周囲照度 | Incandescent light: 1,000 ℓx or less at the light-receiving face |
| 周囲温度 | -10 to +60 ℃+14 to +140 ℉(No dew condensation or icing allowed), Storage: -20 to +70 ℃- 4 to +158 ℉Note : Liquid being detected should also be kept within the rated ambient temperature range. |
| 消費電流 | 15 mA or less |
| 出力:出力操作 | In normal state: ON, When leak detected or the sensor is mounted improperly: OFF |
| 出力:短絡保護 | Incorporated |
製品説明
EXF70 Series. Sensor for the detection of liquid leaks, resistant to chemical substances, built-in amplifier, PNP, 3 m. cable, PVC cover
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
