UHLG125AC5

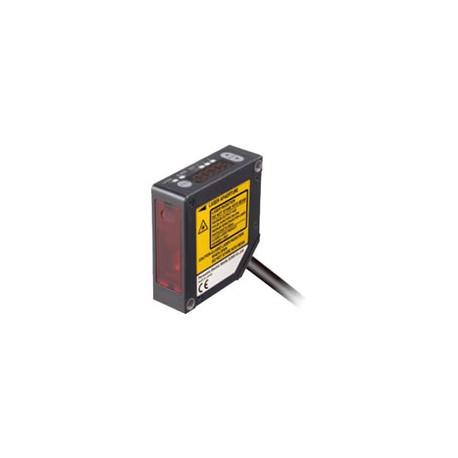

UHLG125AC5 HL-G125-A-C5 PANASONIC Compact Laser Displacement Sensor, Standard type, 250 mm, cable 5 m
$0.00米ドル
3967 在庫あり
主な仕様
アイテム:Specifications
タイプ:Standard type
ケーブル:0.1mm210-core cabtyre cable, 5 m16.404 ftlong
述べる:Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃+68 ℉, sampling rate 500 μs, average number of samples: 1024, measurement center distance, object measured is made of white ceramic and analog measurement values.
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| タイプ | Standard type |
| ケーブル | 0.1mm210-core cabtyre cable, 5 m16.404 ftlong |
| 述べる | Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃+68 ℉, sampling rate 500 μs, average number of samples: 1024, measurement center distance, object measured is made of white ceramic and analog measurement values. |
| 重さ | Net weight: 70 g approx. (not including cable), 320 g approx. (including cable)Gross weight: 380 g approx. |
| 詳細 | Sensor head (Standard type) |
| 製品 | Compact Laser Displacement Sensor |
| 材料 | Enclosure: PBTFront cover: AcrylicCable: PVC |
| アクセサリー | Warning label: 1 set |
| 直線性 | ±0.3% F.S. |
| 解決 | 20 μm0.787 mil |
| マルチ入力 | Zero set, zero set off, reset, memory switching, teaching, saving, and laser control according to the input time.In case NPN output is selected, Function varies according to the time 0 V is connected NPN.In case PNP output is selected, Function varies according to the time external power + is connected. |
| 部品番号 | HL-G125-A-C5 |
| 光源 | Red semiconductor laser, Class 2 (IEC / EN / JIS / GB / KS / FDA (Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.Max. output: 1 mW (Peak emission wavelength: 655 nm0.026 mil) |
| 製品名 | Compact Laser Displacement Sensor HL-G1 |
| タイミング入力 | NPN output operates when 0V is connected and NPN is set. (It depends on the setting.)PNP output operates when external power + is connected and PNP is set. (It depends on the setting.) |
| ビーム径 | 1.75 × 3.5 mm0.069 × 0.138 in(Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2(13.5 %) of the center light intensity. Ifthere is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than thesensing point itself, then the results may be affected. |
| サンプリングレート | 200 μs, 500 μs, 1 ms, 2 ms |
| 製品番号 | HL-G125-A-C5 |
| 供給電圧 | 24 V DC ± 10 % including ripple 0.5 V (P-P) |
| デジタル表示 | Red LED 5 digit display |
| 測定範囲 | ±150 mm±5.906 in |
| インジケーター：アラーム | Orange LED lights up when this product cannot measure because of insuffienct or excessive light intensity. |
| 受信要素 | CMOS image sensor |
| 動作高度 | 2,000 m6561 ftor less |
| 消費電流 | 100 mA or less |
| 汚染度 | 2 |
| 絶縁抵抗 | 20 MOhm , or more, with 250 V DC between all supply teminals connected together and enclosure |
| 規制遵守 | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| アナログ出力：電流 | Output range: 3.2 to 20.8 mA (normal), 21.6 mA (alarm)Load impedance: 300 Ohm or less |
| アナログ出力：電圧 | Output range: 0 to +10.5 V (normal), 11 V (alarm)Output impedance: 100 Ohm |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| インジケーター：レーザー発光 | Green LED (lights up during laser emission) |
| 測定中心距離 | 250 mm9.843 in |
| 温度特性 | ± 0.08 % F.S. / ℃ |
| インジケーター：測定範囲 | Three yellow LED |
| 出力極性設定入力 | NPN open collector output operates when 0 V is connected.PNP open collector output operates when 24 V DC is connected. |
| 出力（OUT 1、OUT 2、OUT 3） | Judgment output or alarm output (Setting can be selected.)Selectable NPN transistor open-collector or PNP transistor open-collector<In case of using NPN output>-Maximum sink current: 50 mA-Applied voltage: 3 to 24 V DC (between output and 0 V)-Residual voltage: 2 V or less (at 50 mA of sink current)<In case of using PNP output>-Maximum source current: 50 mA-Residual voltage: 2.8 V or less (at 50 mA of source current) |
| 環境耐性：保護 | IP67 |
| 耐環境性：周囲湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 耐環境性：耐衝撃性 | 500 m/s2acceleration (50 G approx.) in X,Y and Z directions three times each |
| 耐環境性：周囲照度 | Incandescent light: 3,000 liter x or less at the light-receiving face(Note) The fluctuation by ambient illuminance is ± 0.1 % F.S. or less. |
| 耐環境性：周囲温度 | -10 to +45 ℃+14 to +113 ℉(No dew condensation allowed), Storage: -20 to +60 ℃-4 to +140 ℉ |
| 耐環境性：耐振動性 | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm0.059 indouble amplitude in X,Y and Z directions for two hours each |
| 出力（OUT 1、OUT 2、OUT 3）：出力動作 | Opened when the amount of light is insufficient. |
| 出力（OUT 1、OUT 2、OUT 3）：短絡保護 | Incorporated (automatic restoration) |
製品説明
CMOS class 2 measuring laser, IP67, Diffuse Reflection, built-in display and amplifier, 2 s. analog, 3 selectable digital outputs PNP/NPN, standard model, measurement range: 250 mm ± 150 mm., resoluti
