UNX5PRVM5A

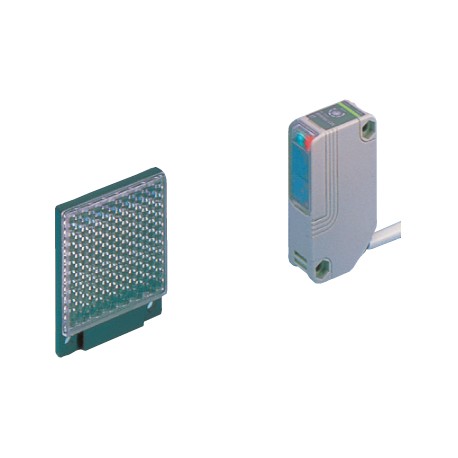

UNX5PRVM5A NX5PRVM5A NX5-PRVM5A PANASONIC Retrofl. with pol.filt.,0,1-5m, light-on, relay output, AC/DC
$0.00米ドル
3189 在庫あり
主な仕様
アイテム:Specifications
ケーブル:0.3 mm2 5-core cabtyre cable, 2 m 6.562 ft long
出力:Relay contact 1 c- Switching capacity: 250 V AC 1 A (resistive load), 30 V DC 2 A (resistive load)- Electrical life: 500,000 or more switching operations (switching frequency 3,600 operations/hour), 100,000 or more switching operations (switching frequency 3,600 operations/hour)- Mechanical life: 100 million or more switching operations (switching frequency 36,000 operations/hour)
重さ:140 g approx.
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | 0.3 mm2 5-core cabtyre cable, 2 m 6.562 ft long |
| 出力 | Relay contact 1 c- Switching capacity: 250 V AC 1 A (resistive load), 30 V DC 2 A (resistive load)- Electrical life: 500,000 or more switching operations (switching frequency 3,600 operations/hour), 100,000 or more switching operations (switching frequency 3,600 operations/hour)- Mechanical life: 100 million or more switching operations (switching frequency 36,000 operations/hour) |
| 重さ | 140 g approx. |
| 詳細 | Retroreflective [With polarizing filters] |
| 製品 | Compact Multi-voltage Photoelectric Sensor |
| 材料 | Enclosure: PolycarbonateLens: PolycarbonateCover: PolycarbonateFront cover: Acylic |
| アクセサリー | RF-230 (Reflector): 1 pcAdjusting screwdriver: 1 pc |
| ヒステリシス | - |
| 保護 | IP66 (IEC) |
| 部品番号 | NX5-PRVM5A |
| 製品名 | Compact Multi-voltage Photoelectric Sensor NX5 |
| 応答時間 | 10 ms or less |
| 検知範囲 | 0.1 to 5 m 0.328 to 16.404 ft(Note) The sensing range and the sensing object of the retroreflective type sensor is specified for the RF-230 reflector. Further, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. |
| 製品番号 | NX5-PRVM5A |
| 検知対象 | dia. 50 mm dia. 1.969 in or more opaque, translucent or specular object(Note) The sensing range and the sensing object of the retroreflective type sensor is specified for the RF-230 reflector. Further, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away.(Note) Make sure to confirm detection with an actual sensor before use. |
| 供給電圧 | 24 to 240 V AC +10-15 % or 12 to 240 V DC +10-15 % Ripple P-P 10 % or less |
| ケーブル延長 | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable |
| 電源インジケーター | - |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 発光要素 | Red LED (modulated) |
| 汚染度 | 3 (Industrial environment) |
| 耐衝撃性 | 500 m/s2(50 G approx.) in X, Y and Z directions three times each |
| 消費電力 | 2 VA or less |
| 周囲照度 | Incandescent light: 3,500 Lx or less at the light-receiving face |
| 周囲温度 | -20 to +55 degrees -4 to +131 degrees Fahrenheit (No dew condensation or icing allowed) (Note) , Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit(Note) In case the sensor is to be used at an ambient temperature of -15 degrees +5 degrees Fahrenheit , or less, please contact our office. |
| 操作インジケーター | Red LED (lights up when the output is ON) |
| 安定性インジケーター | Green LED (lights up under stable light received condition or stable dark condition) |
| 感度調整器 | Continuously variable adjuster |
| 耐振動性 | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions two hours each |
| 絶縁抵抗 | 20 MOhm , or more, with 500 V DC megger between power supply and output terminals, and between relay contact terminals |
| 出力:出力操作 | Light-ON |
| 耐電圧性 | 1,500 V AC for one min. between power supply and output terminals1,000 V AC for one min. between relay contact terminals |
| CEマーキング指令への準拠 | Low Voltage Directive, EMC Directive, RoHS Directive |
| 発光素子:ピーク発光波長 | 660 nm 0.026 mil |
| 自動干渉防止機能 | Incorporated (Two units of sensors can be mounted close together.) |
| 繰り返し精度（センシング軸に垂直） | 0.2 mm 0.008 in or less |
製品説明
Universal multi-voltage photoelectric sensor, reflection on polarized mirror, 0.1-5m, light operation, relay output, AC/DC
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
