UPMK25C3

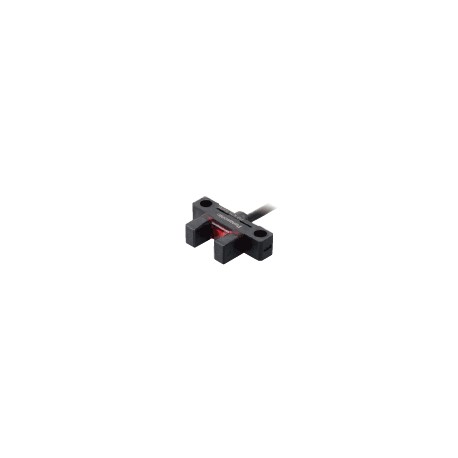

UPMK25C3 PM-K25-C3 PANASONIC u-shape type, K-shape, 6mm, NPN, cable 3m
$0.00米ドル
3118 在庫あり
主な仕様
アイテム:Specifications
ケーブル:0.09-mm24-core cabtyre cable, PVC, 3 m9.843 ftlong
出力:NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
述べる:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | 0.09-mm24-core cabtyre cable, PVC, 3 m9.843 ftlong |
| 出力 | NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| 述べる | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉. |
| 重さ | Net weight: 30 g approxGross weight: 35 g approx. |
| 詳細 | Ultra-small / Cable type [K type] |
| 製品 | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
| 材料 | Enclosure: PBTDisplay section: Polycarbonate |
| ヒステリシス | 0.05 mm0.002 inor less |
| 保護 | IP64 (IEC) |
| 部品番号 | PM-K25-C3 |
| 製品名 | Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Ultra-small / Cable type] PM-25 |
| 再現性 | 0.01 mm0.0004 inor less |
| 応答時間 | Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. |
| 検知範囲 | 6 mm0.236 in(fixed) |
| 配線長 | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m65.617 ftor longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m98.425 ft. |
| 製品番号 | PM-K25-C3 |
| 供給電圧 | 5 to 24 V DC ±10 % Ripple P-P 10 % or less |
| 周囲の湿度 | 5 to 85 % RH, Storage: 5 to 95 % RH |
| 発光要素 | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, non-modulated) |
| 汚染度 | 3 |
| 耐衝撃性 | 15,000 m/s2acceleration (1,500 G approx.) in X, Y and Z directions three times each |
| 周囲照度 | Fluorescent light: 1,000 ℓx at the light-receiving face |
| 周囲温度 | -25 to +55 ℃-13 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +80 ℃-22 to +176 ℉(Note) : In case is used at an ambient temperature of +50 ℃ +122 ℉, or more, make sure to mount it on a metal body. |
| 消費電流 | 15 mA or less |
| 操作インジケーター | Orange LED (lights up under light received condition) |
| 耐振動性 | 10 to 2,000 Hz frequency, 1.5 mm0.059 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 最小検知対象 | 0.8 × 1.2 mm0.031 × 0.047 inopaque object |
| 出力:出力操作 | Incorporated with 2 outputs: Light-ON / Dark-ON |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| 出力:短絡保護 | Incorporated |
| 適用される規制と認証 | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL certification(Note) : Conformed from December 2021 production. |
製品説明
Ultra-miniature horseshoe photoelectric sensor, type K, 6mm range, 2 outputs (one for Light-ON and one for Dark-ON) NPN, 3m cable
