UPX23ES

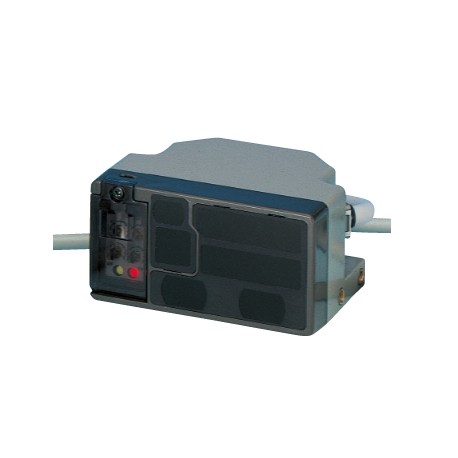

UPX23ES PX23ES PX-23ES PANASONIC PX-2, auxiliary sensor type, ext. control F., 1 m, NPN
$0.00米ドル
4076 在庫あり
主な仕様
アイテム:Specifications
ケーブル:For input and output: 0.18 mm29-core (PX-24ES and PX-23ES: 12-core) cabtyre cable, 0.5 m1.640 ftlongFor auxiliary sensor connection: 0.18 mm210-core connector attached cabtyre cable, 0.5 m1.640 ftlong
重さ:Net weight: 210 g approx.Gross weight: 390 g approx.
詳細:Main sensors(Auxiliary sensor connectable model With external control function / Short sensing range)
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | For input and output: 0.18 mm29-core (PX-24ES and PX-23ES: 12-core) cabtyre cable, 0.5 m1.640 ftlongFor auxiliary sensor connection: 0.18 mm210-core connector attached cabtyre cable, 0.5 m1.640 ftlong |
| 重さ | Net weight: 210 g approx.Gross weight: 390 g approx. |
| 詳細 | Main sensors(Auxiliary sensor connectable model With external control function / Short sensing range) |
| 製品 | Long Range & Wide Area Photoelectric Sensor |
| 材料 | Enclosure: ABS, Lens: Acrylic, Cover: Polycarbonate |
| アクセサリー | MS-PX-2 (Main sensor mounting bracket): 1 set, Adjusting screwdriver: 1 pc., Matrix chart for sensing areas and external inputs: 1 sheet |
| ヒステリシス | 15 % or less of operation distance(Note：The sensing range is specified for white non-glossy paper (300 x 300 mm11.811 × 11.811 in) as the object.) |
| OUT1、OUT2 | NPN open-collector transistor・Maximum sink current: 100 mA・Applied voltage: 40 V DC or less between OUT 1 / OUT 2 and 0 V)・Residual voltage: 1.5 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)* OUT1(OR circuit among the effective center, left, right, adjacent left / right OUT 1 areas and the effective auxiliary left / right areas)OUT2(OR circuit among the effective center, left and right OUT 2 areas) |
| 保護 | IP65 (IEC) |
| 部品番号 | PX-23ES |
| 製品名 | Long Range & Wide Area Photoelectric Sensor PX-2 |
| 検知エリア | Four sensing areas are selectable with dip switches. |
| 応答時間 | 80 ms or less |
| 製品番号 | PX-23ES |
| スリープ機能 | Operating / sleep selectable with external input |
| 供給電圧 | 10 to 31 V DC including ripple |
| ケーブル延長 | Extension up to total 100 m328.084 ft(10 m32.808 ftfor auxiliary sensor connection) is possible with 0.3 mm2, or more, cable. |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 発光要素 | Infrared LED (Peak emission wavelength: 950 nm0.037 mil, modulated) |
| 耐衝撃性 | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| 消費電力 | Under operation: 1.5 W or less, Under sleep condition: 0.3 W or less (without auxiliary sensor)(Note：Obtain the current consumption by the following calculation.Current consumption = Power consumption ÷ Supply voltage(e.g.) When the supply voltage is 12 V, the current consumption (operating condition) is: 1.5 W ÷ 12 V = 0.125 A = 125 mA) |
| 周囲照度 | Incandescent light: 3,000 lx or less at the light-receiving face |
| 周囲温度 | -10 to +55 ℃+14 to +131 ℉(No dew condensation or icing allowed), Storage: -20 to +70 ℃-4 to +158 ℉ |
| 感度調整器 | Continuously variable adjusters (OUT 1, adjacent right OUT 1, adjacent left OUT 1 and OUT 2 areas are adjusted independently.) |
| 耐振動性 | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 20 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| OUT1、OUT2:出力動作 | Selectable either Light-ON or Dark-ON with a switch (Output operation of OUT 1 and OUT 2 is the same.) |
| CEマーキング指令への準拠 | EMC Directive, RoHS Directive |
| 動作表示灯:OUT1エリア | Red LED (lights up when the beam is received in the effective OUT 1 areas) |
| 動作表示灯:OUT2エリア | Yellow LED (lights up when the beam is received in the effective OUT 2 areas) |
| OUT1、OUT2:短絡保護 | Incorporated |
| 検知範囲（OUT 1およびOUT 2領域） | 1 m3.281 ft(Note：The sensing range is specified for white non-glossy paper (300 x 300 mm11.811 × 11.811 in) as the object.) |
| 自動干渉防止機能 | Optical interference from up to 25 units is prevented. |
製品説明
PX-2 Series. Expandable sensor for guided vehicles, external control function, range 1 m., NPN, power supply 10-31 VDC
