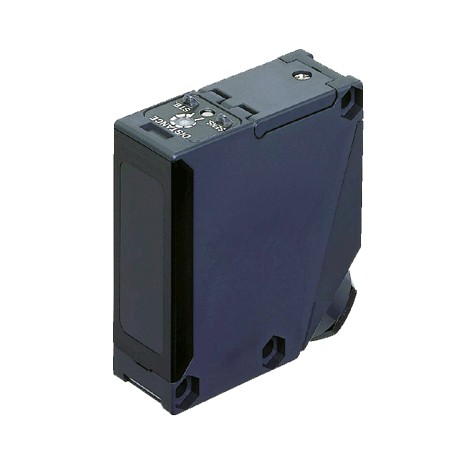

UEQ511T-T
UEQ511T-T EQ511T EQ-511T PANASONIC Trigonometric diffuse reflective type 2,5m, with timer function, NPN/ PNP..
$0.00米ドル
4946 在庫あり
主な仕様
アイテム:Specifications
ケーブル:Suitable for round cable φ9 to φ11 mmφ0.354 to φ0.433 in
出力:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current)
重さ:Net weight: 85 g approx.
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | Suitable for round cable φ9 to φ11 mmφ0.354 to φ0.433 in |
| 出力 | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current) |
| 重さ | Net weight: 85 g approx. |
| 詳細 | DC-voltage [With timer] |
| 製品 | Adjustable Range Reflective Photoelectric Sensor |
| 材料 | Enclosure: ABSFront cover: PolycarbonateDisplay cover: Polycarbonate |
| アクセサリー | Adjusting screwdriver: 1 pc. |
| ヒステリシス | 10 % or less of operation distance(Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object. |
| 保護 | IP67 (IEC) |
| 部品番号 | EQ-511T |
| ケーブル長 | Total length up to 100 m328.084 ftis possible with 0.3 mm2, or more, cabtyre cable. |
| 製品名 | Adjustable Range Reflective Photoelectric Sensor EQ-500 |
| センシングモード | Switchable either BGS or FGS function |
| 応答時間 | 2 ms or less (depends on the setting timer period) |
| 製品番号 | EQ-511T |
| 供給電圧 | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| タイマー機能 | Incorporated with variable (0.1 to 5 sec.) ON-delay/OFF-delay timer |
| 調整可能な範囲 | 0.2 to 2.5 m0.656 to 8.202 ft(Note 1) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can also detect an object 0.1 m0.328 ft, or more, away.(Note 2) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm7.874 x 7.874 in) as the object. |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 発光要素 | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, modulated) |
| 耐衝撃性 | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| 接続方法 | Screw-on terminal connection |
| 距離調整器 | 2-turn mechanical adjuster with indicator |
| 受信要素 | 2-segment photodiode |
| 周囲照度 | Incandescent light: 3,000 Lx or less at the light-receiving face |
| 周囲温度 | –20 to +55 ℃–4 to +131℉(No dew condensation or icing allowed),Storage: –30 to +70 ℃–22 to +158℉ |
| 操作インジケーター | Orange LED (lights up when the output is ON) |
| 安定性インジケーター | Green LED (lights up under stable operating condition) |
| 耐振動性 | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| 絶縁抵抗 | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 出力:出力操作 | Switchable either Detection-ON or Detection-OFF |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| 電力/消費電流 | 45 mA or less |
| CEマーキング指令への準拠 | EMC Directive, RoHS Directive |
| 出力:短絡保護 | Incorporated |
| 自動干渉防止機能 | Incorporated(Note) Note that the detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object. |
| 検知範囲（最大設定距離時） | 0.1 to 2.5 m0.328 to 8.202 ft(Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm7.874 x 7.874 in) as the object. |
製品説明
Trigonometric photoelectric sensor, direct detection with background suppression and long range, 2.5m, power supply 12-24VDC, selectable NPN/PNP output, IP67, , FGS and BGS functions, timer
